Product Datasheet Search Results:
8 Pages, 372 KB, Scan- JAN1N1126A
- Defense Logistics Agency
- 3.3 A, SILICON, RECTIFIER DIODE, DO-203AA
3 Pages, 60 KB, Original- JAN1N1126A
- Microsemi Corp.
- 3.3 A, 400 V, SILICON, RECTIFIER DIODE, DO-203AA

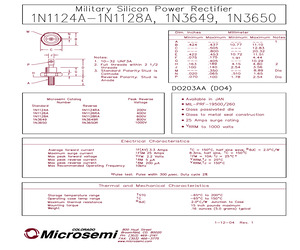

2 Pages, 103 KB, Scan- JAN1N1126AR
- Microsemi Corporation
- Standard Rectifier (trr more than 500ns)

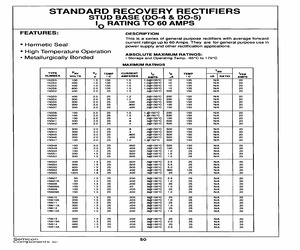

1 Pages, 127 KB, Scan- JAN1N1126A
- N/a
- Shortform Semicon, Diode, and SCR Datasheets
Product Details Search Results:
Aeroflex.com/JAN1N1126A
{"Status":"ACTIVE","Package Body Material":"METAL","Mfr Package Description":"FORMERLY DO-4, 1 PIN","Terminal Form":"SOLDER LUG","Package Style":"POST/STUD MOUNT","Number of Phases":"1","Diode Element Material":"SILICON","Application":"POWER","Average Forward Current-Max":"3.3 A","Case Connection":"CATHODE","Non-rep Pk Forward Current-Max":"25 A","Terminal Position":"UPPER","Diode Type":"RECTIFIER DIODE","Package Shape":"ROUND","Configuration":"SINGLE","Number of Terminals":"1","Number of Elements":"1"}...
1203 Bytes - 17:25:59, 09 January 2026
Microsemi.com/JAN1N1126A
{"Status":"ACTIVE","Terminal Finish":"TIN LEAD","Package Body Material":"METAL","Mfr Package Description":"METAL, DO-4, 1 PIN","Terminal Form":"SOLDER LUG","Package Style":"POST/STUD MOUNT","Rep Pk Reverse Voltage-Max":"400 V","Number of Phases":"1","Diode Element Material":"SILICON","Application":"POWER","Average Forward Current-Max":"3.3 A","Case Connection":"CATHODE","Non-rep Pk Forward Current-Max":"25 A","Terminal Position":"UPPER","Diode Type":"RECTIFIER DIODE","Package Shape":"ROUND","Configuration":...
1258 Bytes - 17:25:59, 09 January 2026
